Direct supply of independent positive and negative fuse boxes for automobiles

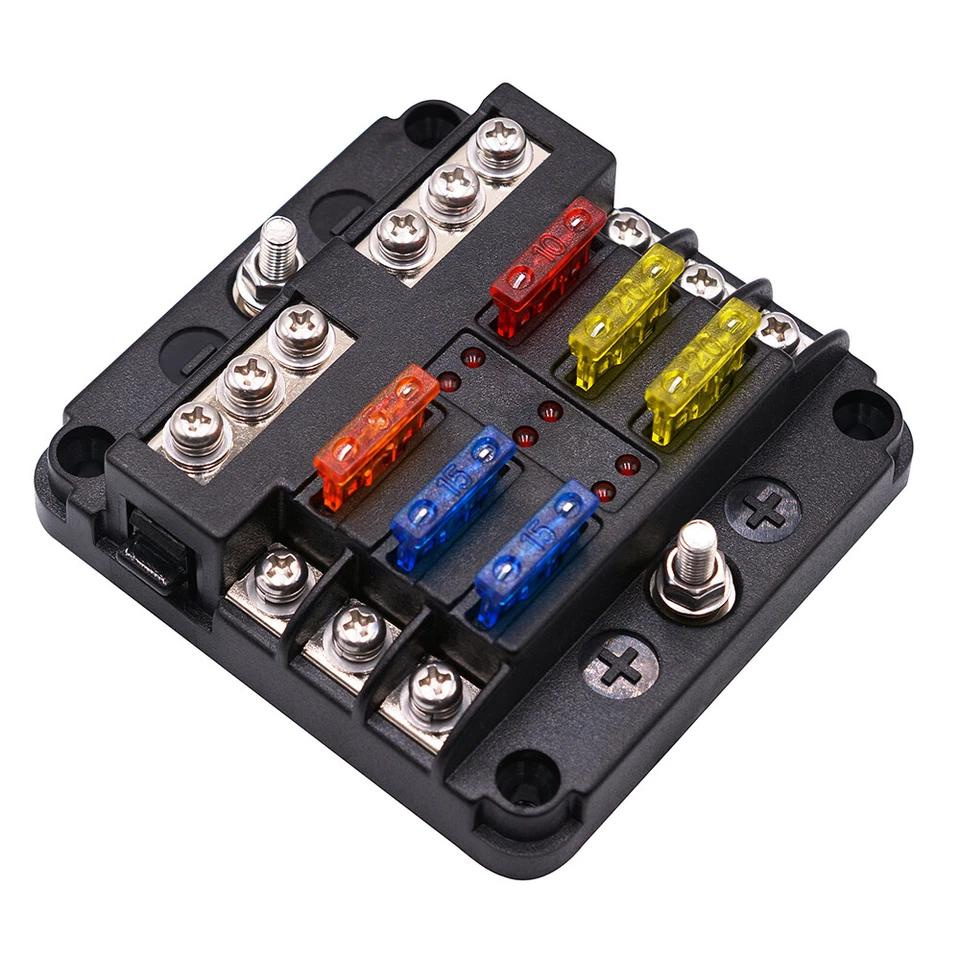

6/12 Way Blade Fuse 12-24V Car Boat Fuse Box Holder with Plastic Cover for Power Panel Board Camper RV AccessorieDescription

Features:

- The 6-way fuse box with 12 fuses is an ideal kit for cars and engines.

- The fuse holder with LED display can quickly detect faults.

- Fuses are color-coded (yellow fuse has a rated current of 20A, blue fuse has 15A, red fuse has 10A, and orange fuse has 5A).

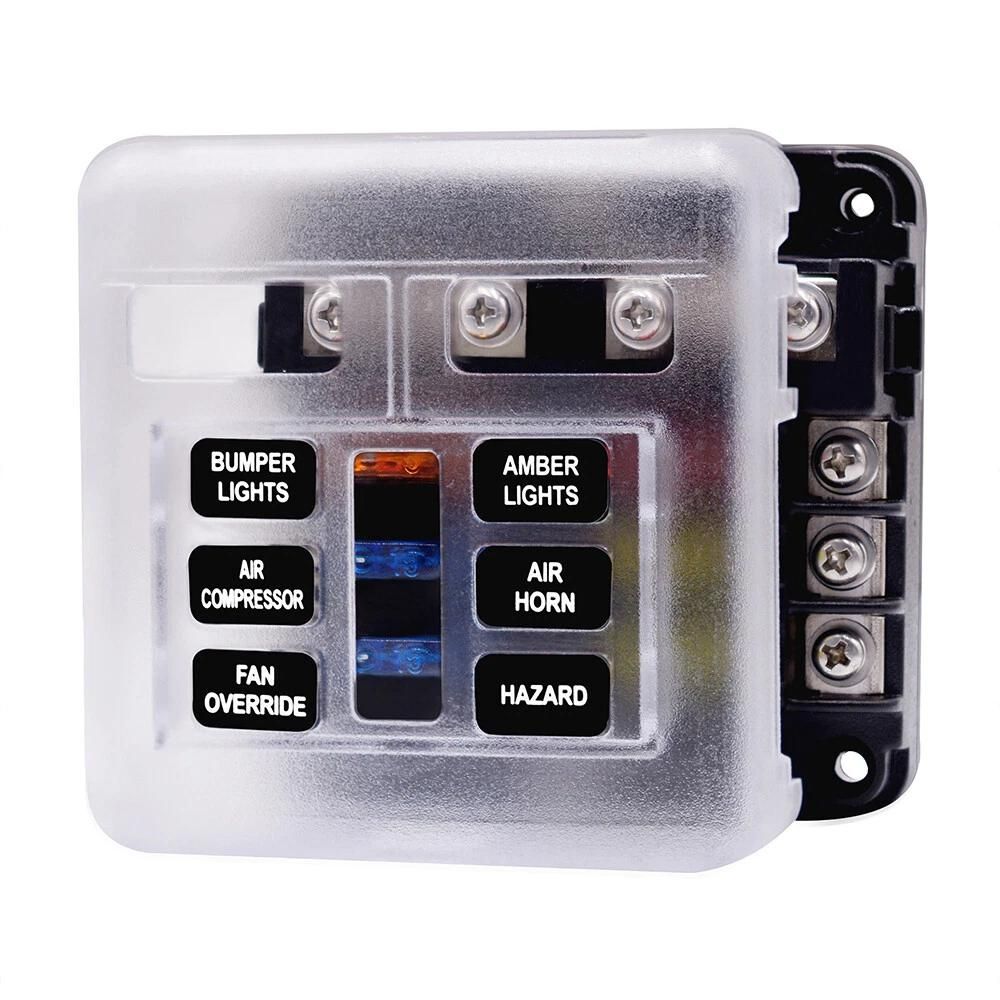

- Equipped with a transparent splash-proof and dust-proof cover and 40 stickers for easy identification and operation.

- Suitable for all automotive and marine applications, including 12V and 24V systems (maximum voltage 32V).

Specifications

- Input Cable: #4-6 AWG

- Output Cable: #12-16 AWG

- Fuse Holder Type: 6-way

- Fuse Type: Standard blade fuse (ATO/ATC)

- Rated Voltage: 32V DC

- Fuse Configuration: 20A × 4, 15A × 4, 10A × 2, 5A × 2

- LED Display Color: Red

Product Features

- Material: PBT body, PC waterproof and dustproof cover, nickel-plated copper terminal, PPX40 sticker

- Input Rated Voltage: 32V

- Input Rated Current: 100A

- Maximum Output Current: 30A per circuit

- Indicator Color: Red

- Main Thread Terminal: M5 threaded stud

- Main Thread Wire: #4-6

- Single Thread Terminal: M4 threaded stud

- Single Thread Wire: #12-16

- Indicator Function: When the red LED display lights up, it indicates that the fuse has blown and needs to be replaced in time to continue operation.

- Installation Area: Suitable for cars, SUVs, RVs, buses, yachts, boats, etc.

- Application Area: Can be directly connected to the wiring of any electrical device in the car/boat (e.g., dome light, headlights, taillights, fog lights, warning lights, car refrigerator, car charger, car fan, car TV, etc.).

- Fuse Function: When the circuit is interrupted or abnormal, the current will continuously increase. Excessive current can damage important or valuable components in the circuit and may even burn out the circuit or cause a fire. Fuses protect electronic devices from overcurrent damage and prevent serious damage to electronic devices due to internal faults.

- Each fuse has a rated value and will blow when the current exceeds this value. If the fuse is correctly placed in the circuit, it will cut off the power when the current reaches a certain level and temperature, thereby protecting the safe operation of the circuit.

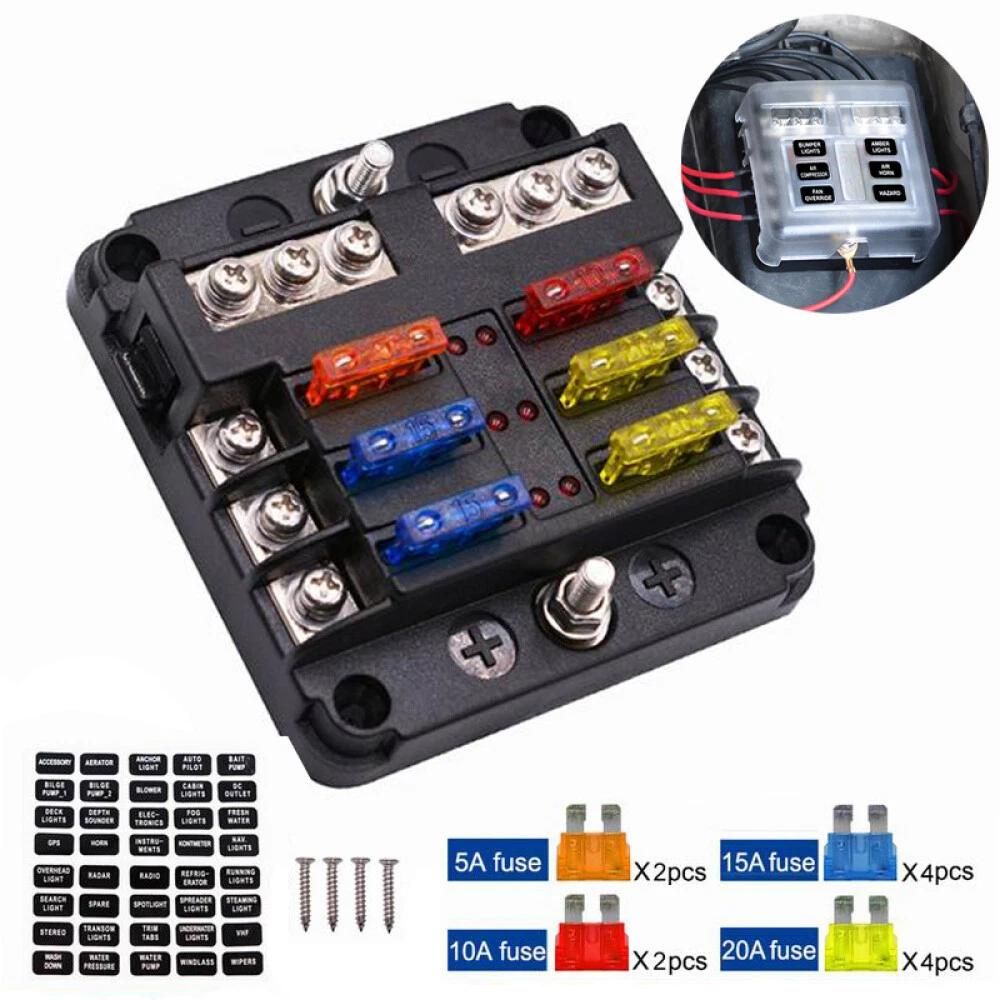

Package Includes

- Fuse box holder × 1

- Stickers × 40

- Self-tapping screws × 4

- 20A fuses × 4

- 15A fuses × 4

- 10A fuses × 2

- 5A fuses × 2
